72W Modular LED Palm Tree Ring Light | LS-JA1005

The LS-JA1005 is a modular LED palm tree ring light. Its standard 72W configuration consists of six 12W modules. Modules can be connected to form a ring for different tree trunk sizes. The light is installed around the trunk without drilling into it.

Features

• 12W per LED module
• Modular design with configurations for different tree sizes
• Dark grey aluminum housing with a corrosion-resistant finish
• Tempered-glass cover
• IP65 protection for outdoor use
• Single-color, RGB, and RGBW versions available
• Optional beam angles: 15°, 30°, 45°, and 60°

Product Specifications

Material: Aluminum housing with tempered glass
Power: 12W per module
Standard configuration: 72W (6 modules)
Available configurations: 4 modules (48W), 5 modules (60W), 6 modules (72W), 7 modules (84W), 8 modules (96W), 9 modules (108W), 10 modules (120W), 11 modules (132W), or 12 modules (144W), more modules can be added to create larger rings
Light source: 12 × 1W LEDs per module
Light color: Warm white, cool white, golden yellow, red, green, blue, RGB, or RGBW, depending on the model
Input voltage: 120V AC, 220V AC, or 24V DC, depending on the version
Beam angle: 15° / 30° / 45° / 60°
Luminous efficacy: 110–120 lm/W
LED lifetime: 50,000 hours
CCT: 2700–6500K for white-light versions
CRI: Ra ≥ 80 for white-light versions
RGB control: Automatic color changing; DMX512 available on selected models
Protection rating: IP65
Certificates: CE and RoHS
Warranty: 2 years

Modular Ring Assembly and Lighting Effects

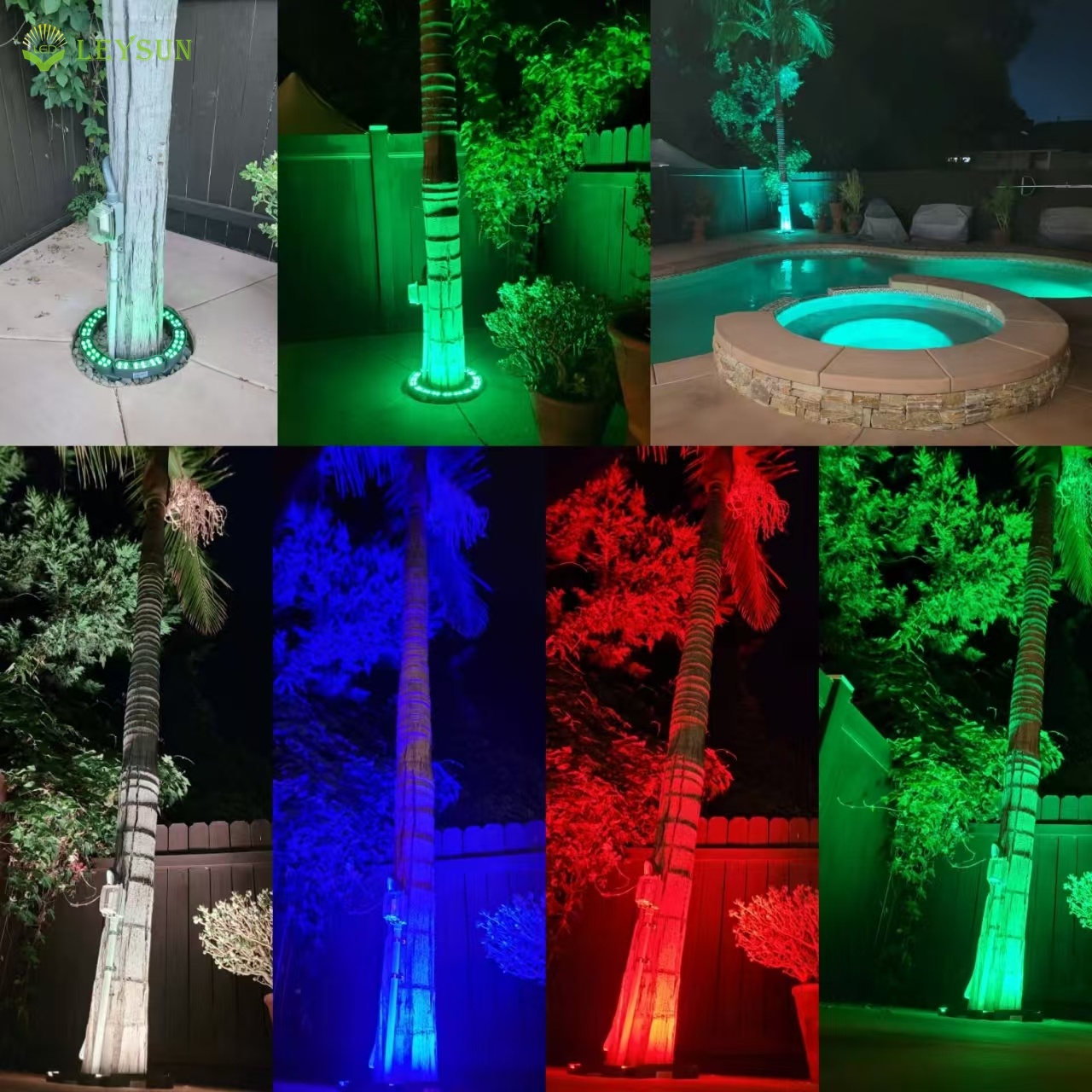

The images show the assembled LED ring from the front and back, as well as examples of its lighting effects. Modules connect to form a ring suited to different tree trunk sizes. Light colors and control options depend on the selected version.

Expandable 12W Modular Design
Each 12W module can be connected with additional modules to create rings in different sizes for different trees.

LED palm tree light application in the USA

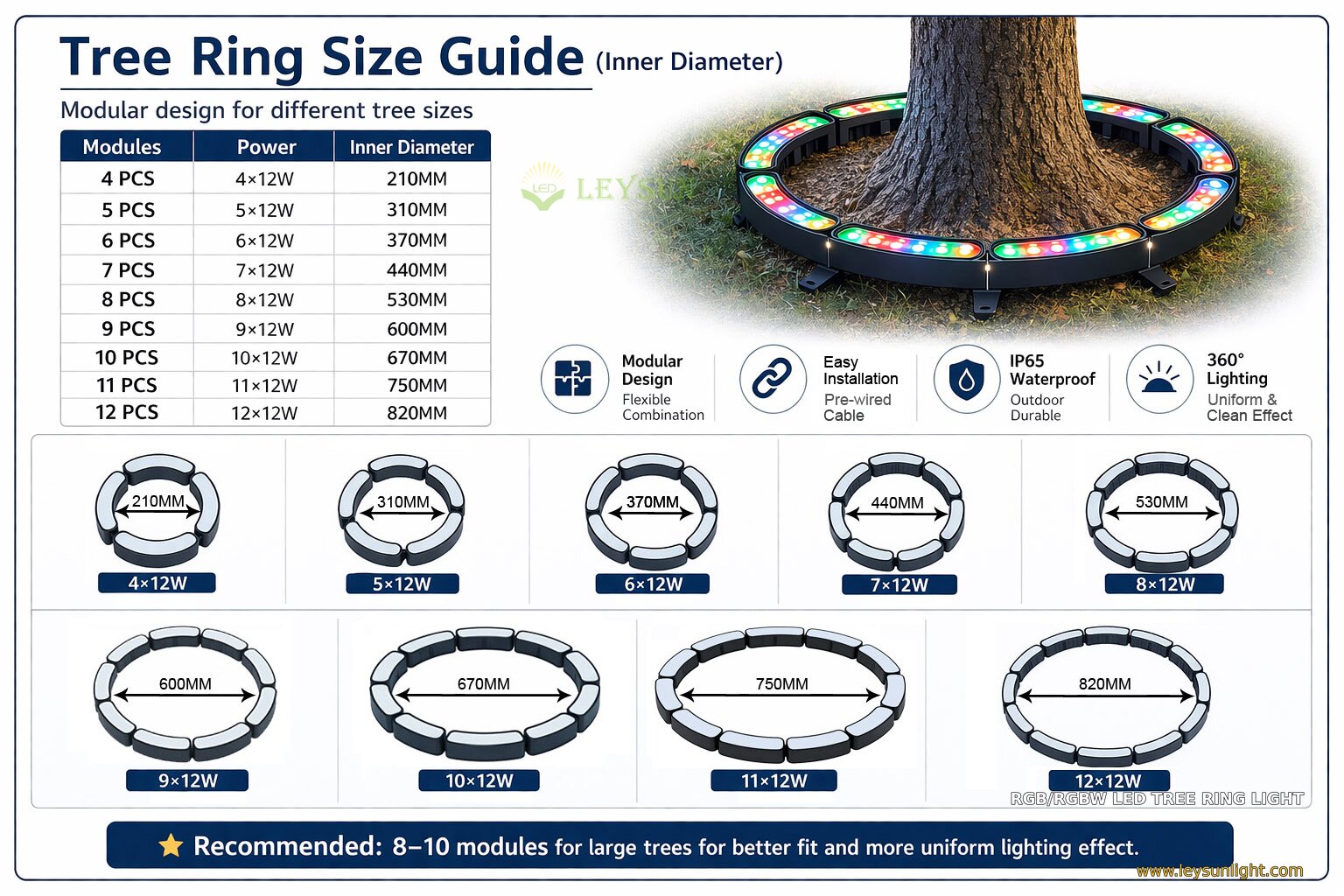

Inner Diameters for Different Module Configurations

Each 12W module connects to additional modules to form a ring sized for different tree trunks. The diagram shows example configurations and their corresponding inner diameters. More modules can be added to create larger rings.

The LS-JA1005 modular LED palm tree ring light is designed to illuminate palm trees in resorts, hotels, parks, golf courses, commercial landscapes, and outdoor event venues. Its expandable ring design accommodates different trunk sizes, making it suitable for both individual trees and larger landscape projects.

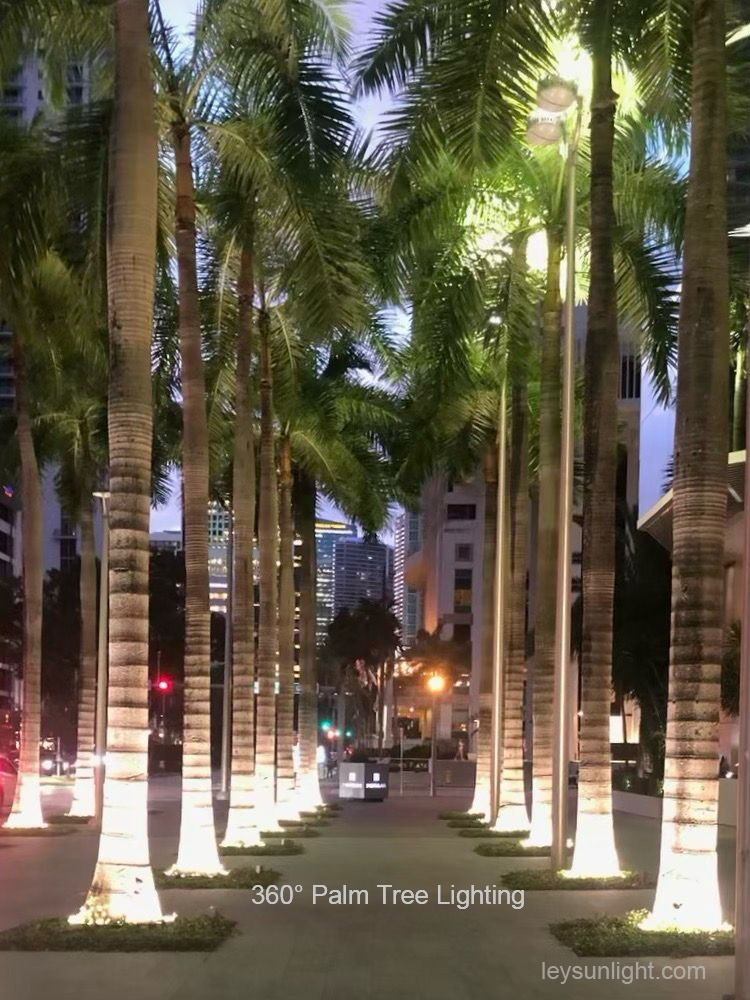

A U.S. landscape project featuring 250 LED modules installed around palm trees for warm, 360-degree illumination.

This video shows six LS-JA1005 RGB LED palm tree ring light sets connected in sequence. Each set forms one complete ring with six 12W modules, for a total of 72W per ring. The first ring comes with a 120V AC plug for plug-and-play use, while the remaining rings connect to it in sequence. Cable lengths between rings can be customized to suit the project layout.

This customer video shows the RGB lighting effect of the LS-JA1005 LED palm tree ring light after installation. The light ring illuminates the palm tree trunk with vivid colors.
